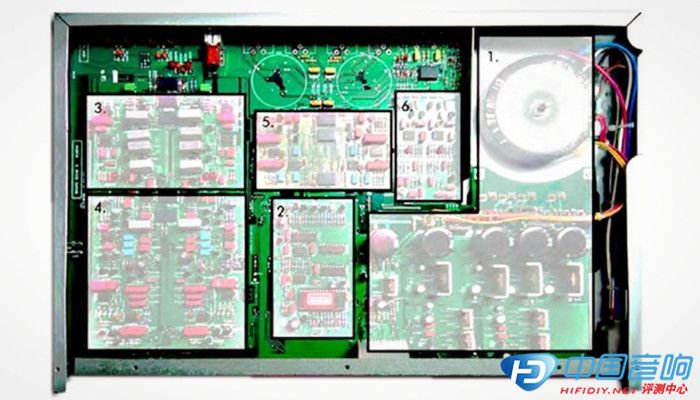

V útrobách:

1. zdrojová časť
2. elektronika ovládajúca displej, voľbu vstupov, výstup, mute
3. sekcia pre MC
4. sekcia pre MM
5. RIAA / IEC ekvalizácia, bandpass filter
6. "DC Bias Voltage Feedback Servo"
DC bias voltage feedback servo board is audiolab patented "ZQ" system. A continuous dynamic servo system, replacing the traditional capacitive coupling, thus reducing intermodulation distortion to ensure pure signal path and the widest bandwidth (the specific circuit and working details are not available), this part should be the most special 8000PPA phono or most distinctive.
